HFI DUCTED WIND TURBINE: A REVOLUTIONARY ADVANCEMENT IN WIND ENERGY

The HFI ducted wind turbine represents a significant leap forward in wind energy technology, offering exceptional performance, efficiency, and cost benefits over traditional open rotor and vertical axis wind turbines. Through state-of-the-art aerodynamics, an innovative Smart Hydraulic Drive (SHD) system, and a dynamic telescopic tower design, the HFI ducted wind turbine is set to revolutionise wind energy generation.

Below, we explore the advanced technologies behind the HFI turbine and its advantages over existing wind turbine technologies.

1. TECHNOLOGICAL ADVANCEMENTS

Advanced Aerodynamics

The HFI ducted wind turbine features a carefully engineered bi-cowling design that significantly increases wind velocity as air flows through the cowling and across the rotor blades. This design, perfected through over 15,000 hours of Computational Fluid Dynamics (CFD) and wind tunnel testing, results in an average increase in electrical energy generation of 357% compared to an optimized open rotor wind turbine of the same diameter, with maximum efficiency gains reaching up to 395% in testing.

• Wind Velocity Increase Through Cowling: The cowling design accelerates airflow as it moves through the turbine. According to the continuity equation for incompressible flow, the velocity of air increases as it passes through the narrower section of the cowling:

𝐴₁𝑣₁ = 𝐴₂𝑣₂

Here, 𝐴₁​ and 𝐴₂​ are the cross-sectional areas, and 𝑣₁​ and 𝑣₂​ are the velocities at the respective sections. By designing the cowling such that 𝐴₂​ is smaller than 𝐴₁​, the velocity 𝑣₂ increases, enhancing the wind speed through the rotor.

• Power Output Enhancement: The power output (𝑃) of a wind turbine is given by:

𝑃 =½𝐶_𝑝ρ𝐴𝑣³

Where 𝐶_𝑝 is the power coefficient, ρ is the air density, 𝐴 is the swept area, and 𝑣 is the wind velocity. By increasing 𝑣 through the cowling, the power output 𝑃 is significantly enhanced. For the HFI ducted turbine, this design results in approximately a 350% increase in power output compared to an open rotor turbine of the same diameter.

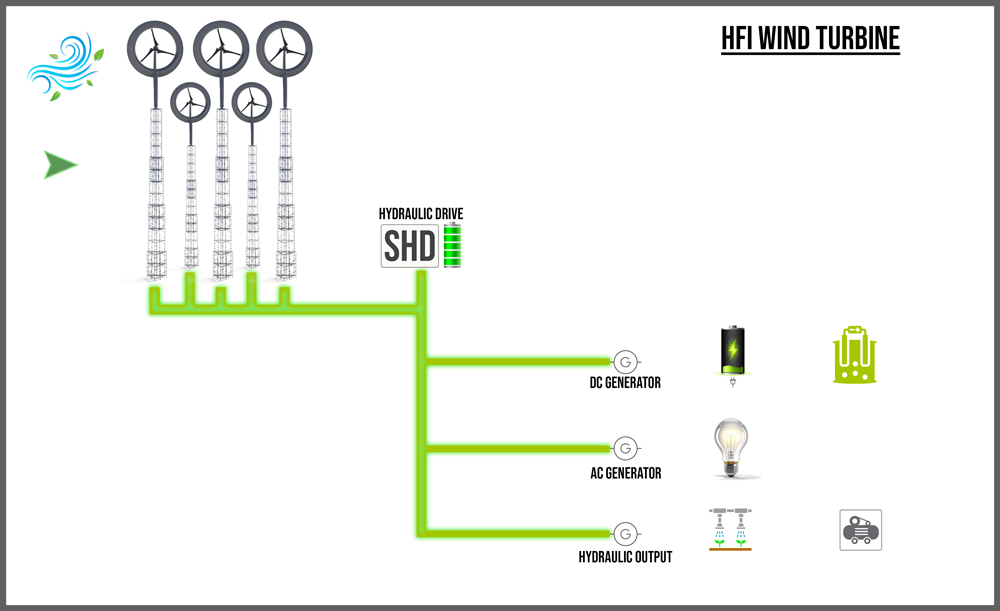

Decoupled Smart Hydraulic Drive System (SHD)

The patented HFI Smart Hydraulic Drive (SHD) replaces conventional mechanical gearboxes, greatly improving efficiency, energy generation, and reliability. The SHD allows the wind turbine to operate efficiently across a wide range of wind speeds (from 2 m/s to 25 m/s) without a significant drop in efficiency, unlike traditional wind turbines that peak at around 12-14 m/s.

This system also supports the direct production of DC electricity, which is essential for hydrogen production, thereby eliminating the need for AC to DC rectifiers and further reducing capital and operational costs.

The Smart Hydraulic Drive (SHD) functions similarly to a Power Take Off (PTO) system found on agricultural equipment like tractors. Unlike conventional wind turbines and solar power systems that are typically limited to generating electricity, the SHD offers versatility for various applications. It can produce both AC and DC electricity, generate heat, and power hydraulic systems for uses that don't require electricity, such as irrigation pumps, air conditioning units, and gas compressors.

This unique capability makes the HFI energy system a highly efficient and cable energy generation tool for remote and off grid applications.

• Elimination of Gearbox: Traditional wind turbines use gearboxes to convert the rotor's low rotational speed to the high speed needed by the generator. These gearboxes are heavy, prone to mechanical failures, and require significant maintenance. The SHD system removes the need for a gearbox by using hydraulic pumps to convert mechanical energy directly into hydraulic energy, which then drives an electrical generator located at ground level.

• Relocation of Generators: Relocation of Generators: Traditional wind turbines place the generator at the top of the tower, which adds significant weight and makes maintenance more challenging and costly. In contrast, the HFI wind turbine’s Smart Hydraulic Drive (SHD) positions the generator at ground level. This design reduces the structural load on the tower, simplifies maintenance, and lowers both construction and operational costs.

• Decoupled Design Advantages: The HFI wind turbine features a unique decoupled design that provides several substantial benefits over the conventional drive systems used in wind turbines since the 1970s. A "decoupled" system means that the electrical generator is not directly connected to each wind turbine. Instead, it can be switched on or off as needed, allowing for greater flexibility. Additionally, multiple HFI wind turbines can be connected to a single electrical generator, rather than requiring each turbine to have its own dedicated generator.

• Why is This Beneficial? For example, if a facility—such as a mining operation, energy storage site, data centre, or farm—requires a steady 40 MW of direct electrical power, the HFI system can meet this demand with just 40 MW of electrical generators and a corresponding number of wind turbines, regardless of varying wind conditions.

In contrast, traditional wind turbines have an operational capacity factor of only 25%-40%. This means that to reliably provide 40 MW of power, you would need between 100-160 MW of traditional wind turbine capacity. This requirement significantly increases costs due to the need for more wind turbines as the generators are directly coupled. In comparison, the HFI system is much more cost-effective, providing the necessary power output with fewer generators and wind turbines thanks to its higher operating efficiency, lower costs, and the innovative SHD technology.

• Enhanced Efficiency Across Wind Speeds: The SHD system dynamically adjusts to varying wind speeds, ensuring optimal energy capture under diverse conditions. Unlike traditional systems that may experience efficiency drops at low or high wind speeds, the SHD system maintains consistent performance, leading to higher overall energy generation.

• Direct Production of DC Electricity: The SHD system allows for the direct production of DC electricity, which is particularly beneficial for applications such as hydrogen production and battery storage that require DC power. This feature eliminates the need for additional rectification equipment, reducing costs and improving system efficiency.

The decoupled hydraulic drive system of the HFI wind turbine represents a significant improvement in efficiency, flexibility, and cost-effectiveness over older wind turbine technologies, making it an ideal choice for modern renewable energy applications.

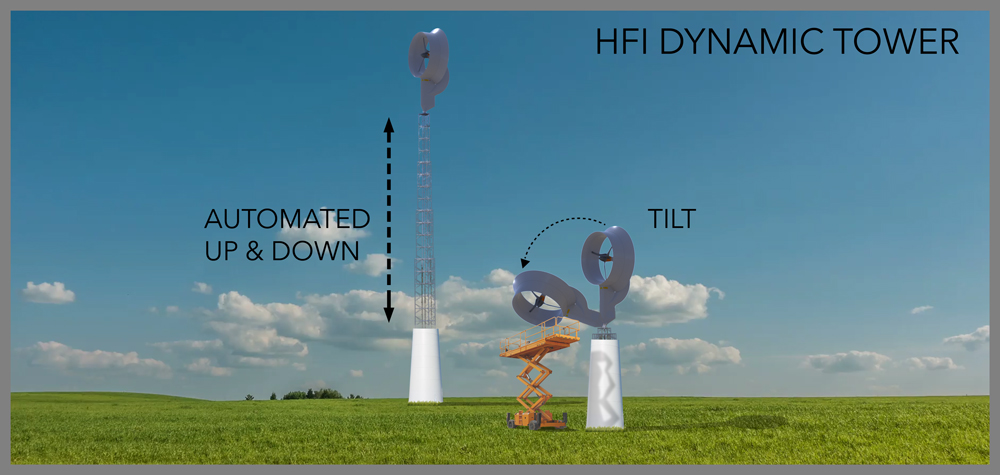

Dynamic Telescopic Tower

The HFI Dynamic Tower is a groundbreaking automated telescopic system that adjusts the height of the wind turbine in response to operational conditions. This innovative design allows for maintenance and assembly to be performed at ground level, which significantly reduces costs, time, and infrastructure requirements while enhancing overall safety. In situations involving high winds or seismic activity, the tower can automatically lower itself, thereby safeguarding both the turbine and the surrounding area.

The HFI wind turbine's lightweight design makes the Dynamic Tower possible. By replacing the traditional gearbox and generator with the Smart Hydraulic Drive (SHD) located at ground level, a substantial amount of weight is removed from the top of the tower. This weight reduction enables the use of an automated telescopic system, making it both practical and efficient.

The Dynamic Tower offers significant operational and maintenance advantages throughout the turbine's lifespan. Assembly and routine maintenance are conducted safely at ground level, eliminating the need for large cranes and reducing both servicing and insurance costs. In a wind farm setting, turbines facing forward can automatically lower to minimise wind turbulence effects on the turbines behind them, thereby enhancing energy production and extending the operational life of the wind farm.

2. Performance and Operational Advantages

Efficiency Gains

The HFI wind turbine stands out with its unique cowling and diffuser design that fully encloses the rotor blades, unlike the open rotor design of conventional wind turbines. This aerodynamic innovation significantly boosts wind speed by a factor of 2.5, resulting in over a 300% increase in energy generation compared to traditional open rotor turbines.

These efficiency gains mean that the HFI turbines can be smaller, lighter, and more cost-effective while still producing the same amount of energy as much larger open rotor turbines.

Operational Flexibility

The Smart Hydraulic Drive (SHD) system allows the HFI turbine to operate efficiently across a wider range of wind speeds than traditional turbines, ensuring reliable energy production and maximizing the use of available wind resources. The turbine's aerodynamic design enables it to start generating power at lower wind speeds, while the SHD enhances energy generation at higher wind speeds, making the most of varying wind conditions.

The HFI turbine offers unparalleled flexibility. The SHD system not only allows for the use of multiple plug-in devices to utilize generated energy but also supports additional energy generation. The system can produce electricity in both AC and DC formats and can directly power devices such as irrigation pumps, air conditioning systems, and gas compressors, eliminating the need for costly electric or diesel motors.

Additionally, the SHD enables seamless integration of other energy sources, such as photovoltaic (PV) panels and other power generation methods, to work alongside the wind turbine. This unique capability provides a versatile solution for those looking to expand their energy capacity or transition to a larger, cleaner energy generation system. The hydraulic drive allows devices with different power outputs to function together smoothly, avoiding the complexities and expenses associated with connecting disparate electrical systems.

Noise Reduction

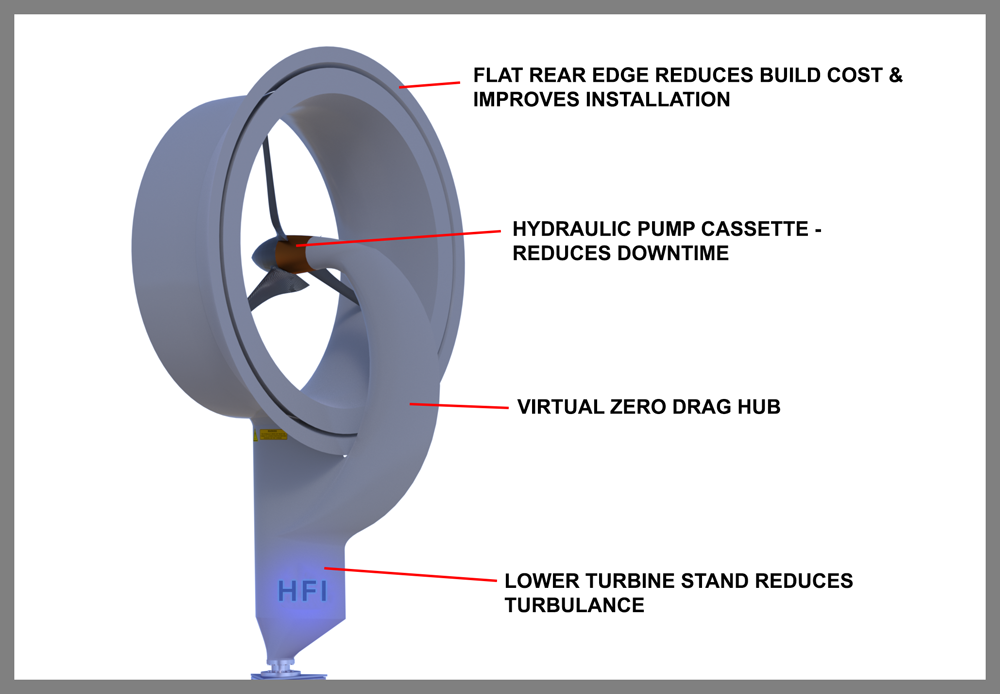

The enclosed rotor blades of the HFI turbine significantly reduce noise pollution, making it ideal for installations near residential areas. The unique rotor hub design eliminates the noise typically generated by rotor blades passing the tower.

Enhanced Safety and Maintenance

With the generator located at ground level and maintenance performed at ground level, the HFI ducted wind turbine reduces the complexity, cost, and risk associated with servicing traditional turbines. The dynamic tower further enhances safety by lowering in response to adverse conditions.

Environmental and Wildlife Protection

The enclosed design of the HFI turbine enhances bird safety by presenting a solid structure rather than exposed blades. Additionally, the reduced noise levels contribute to a more harmonious coexistence with surrounding wildlife and human populations.

3. COST ADVANTAGES

Lower Capital and Operational Costs

The HFI ducted wind turbine offers significantly lower capital expenditure (CapEx) and operational expenditure (OpEx) compared to traditional wind turbines, thanks to its higher efficiency and innovative design. These cost savings are achieved through the turbine's advanced technology, which reduces both the initial investment and ongoing maintenance costs.

According to the 2022 Cost of Wind Energy Review by the National Renewable Energy Laboratory (NREL), the HFI ducted wind turbine surpasses several benchmark metrics set for conventional wind turbines. HFI’s approach focuses on delivering robust, efficient, and cost-effective technology to the clean energy market. The system is specifically designed to minimise complexity and reduce operational costs, making it an economically advantageous choice for energy generation.

Hydraulic Drive and Generator Placement

The elimination of the gearbox and relocation of the generator to ground level significantly reduce the weight and cost of the nacelle. This simplification lowers construction, and maintenance costs and allows for standard containerised transportation, further reducing logistical expenses.

No Need for Electrical Rectifiers

By directly producing DC electricity, the HFI turbine reduces the need for costly rectifiers in hydrogen production or battery storage, making the process more efficient and cost-effective.

4. HFI DUCTED WIND TURBINE - DEVELOPMENT

The development of the HFI ducted wind turbine has been an extensive process involving multiple phases of research, testing, and optimization. HFI's approach combines theoretical research, CFD modelling, and empirical testing to achieve a design that maximises energy generation while minimising operational costs.

Research and Theoretical Foundations

The initial phase of development involved comprehensive research to enhance wind turbine efficiency. The team focused on leveraging the aerodynamic benefits of a ducted turbine design.

• Literature Review and Theoretical Analysis: HFI conducted an in-depth review of existing wind turbine technologies and aerodynamic principles to identify potential design improvements for higher efficiency.

• Formula Development: Using computational fluid dynamics, HFI developed the theoretical basis for the enhanced power output of their ducted turbine. Key formulas, such as the Betz limit, were crucial in understanding the maximum efficiency achievable by any wind turbine design.

Computational Fluid Dynamics (CFD) Modelling

Extensive CFD modelling was used to simulate airflow through various turbine designs, optimising the shape of the duct and rotor blades for maximum energy capture.

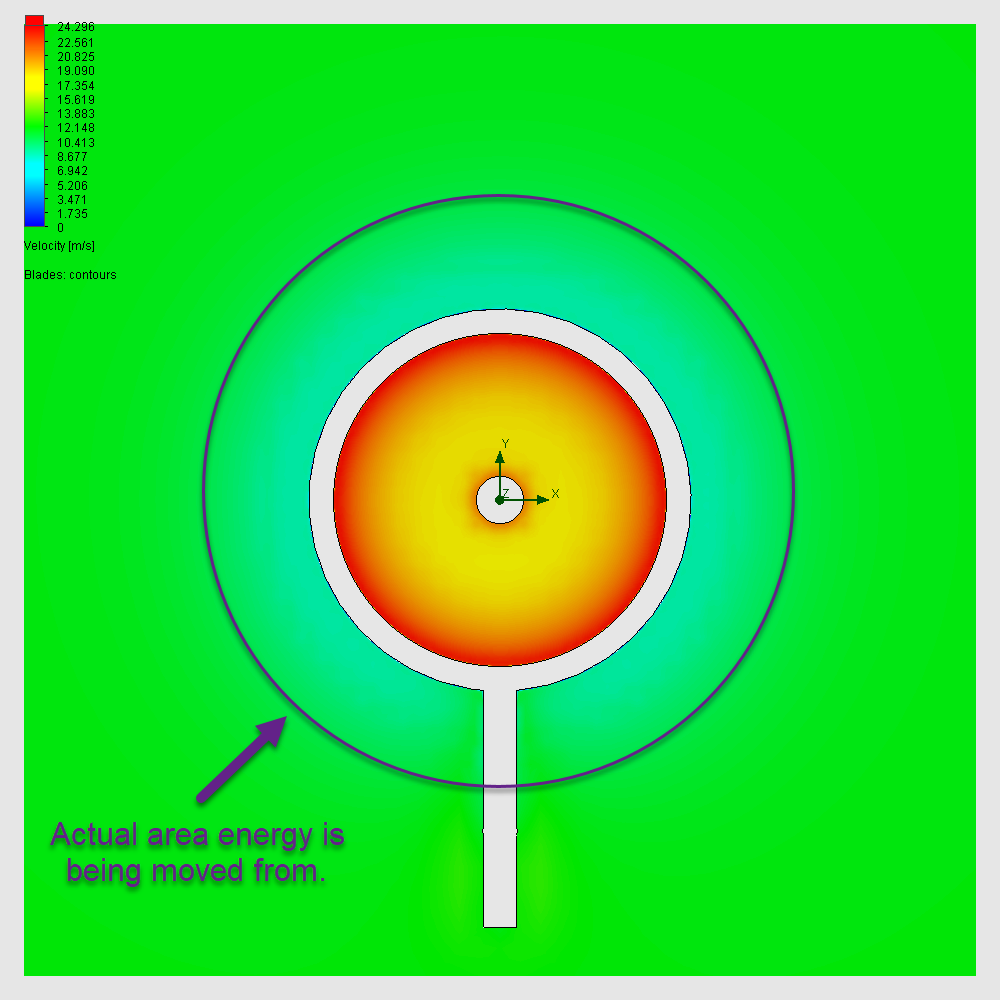

• CFD Simulations: State-of-the-art CFD software modelled airflow around the turbine, identifying optimal cowling and rotor blade shapes that increase wind speed through the turbine and enhance power output. Over 15,000 hours of CFD modelling went into the aerodynamic development of the wind turbine surfaces.

• Iterative Optimisation: The design process was iterative, with numerous adjustments to the cowling and rotor designs based on CFD results. Each iteration aimed to refine the design for the highest possible efficiency. Each step helped shape the wind turbine to the design that we have today.

Wind Tunnel Testing

Following CFD simulations, HFI built scale models of the ducted wind turbine and tested them in wind tunnels to validate computational results.

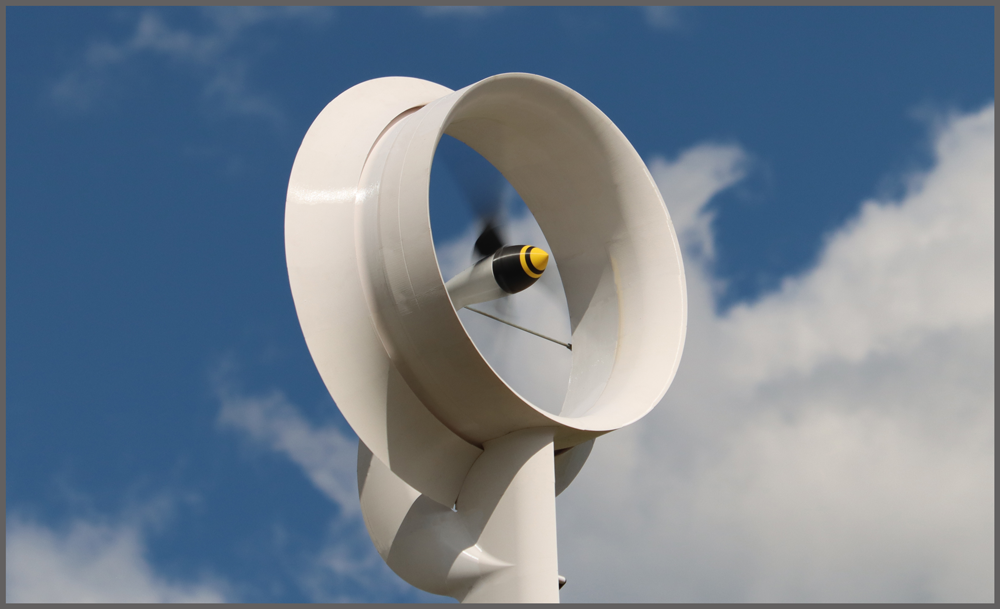

• Prototype Testing: Initial prototypes were constructed using 3D printing technology, allowing rapid modifications based on test results. Wind tunnel tests provided empirical data to cross-validate the CFD models and further refine the turbine design.

• Validation of Results: Wind tunnel tests confirmed the theoretical predictions and CFD simulations, demonstrating significant efficiency gains over traditional open rotor designs and finalising the design parameters for the full-scale turbine.

Field Testing

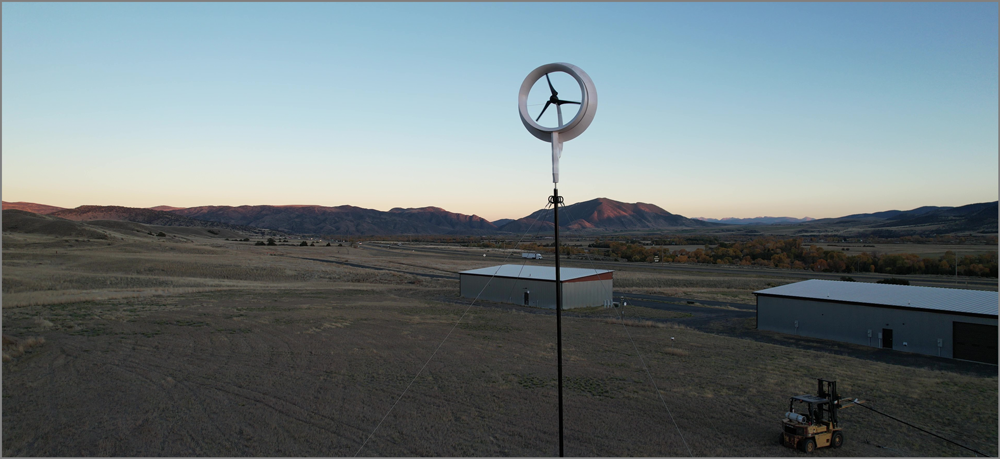

The HFI wind turbine has advanced from computer simulations and wind tunnel experiments to live field testing in the challenging environment of Montana. This location offers an ideal testing ground for refining the turbine's design, with wind speeds reaching up to 70 mph and temperatures fluctuating from 42°C to -50°C throughout the year. These extreme conditions provide a rigorous test of the turbine's durability and performance.

Currently in the final stages of testing, the results have been extremely promising. The HFI turbine has delivered a 274% increase in energy generation compared to traditional open rotor wind turbines, highlighting its superior efficiency and resilience. The final steps in the field testing are centred around further efficiency improvements, these results are due for public release in the final quarter of 2024.

As this stage of development ends the focus moves to the production scale units. The initial strategy is to target small industrial and agricultural markets in the U.S. and Europe, combining the advanced ducted wind turbine with energy storage solutions and green hydrogen generation to offer a comprehensive, sustainable energy system.

The HFI ducted wind turbine is a significant advancement in wind energy technology. Through meticulous research, advanced CFD modelling, and rigorous testing, HFI has developed a turbine that offers substantial efficiency gains, operational flexibility, and cost advantages over traditional open rotor and vertical axis wind turbines. The integration of aerodynamic cowlings, the innovative Smart Hydraulic Drive system, and a dynamic telescopic tower collectively position the HFI ducted wind turbine as a leading solution in the renewable energy sector, capable of delivering sustainable and economical wind energy for various applications.
